Industrial HO scale layout

Michael’s been in touch with his industrial HO scale.

Best of all are the construction photos at the end – you can see how it did it from start to finish:

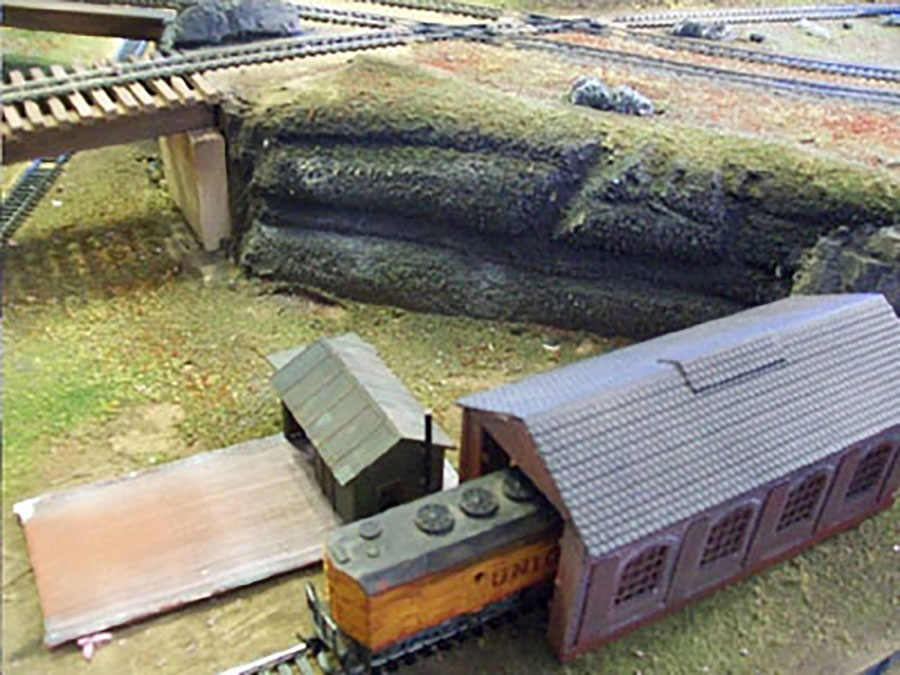

engine shed

industrial ho scale

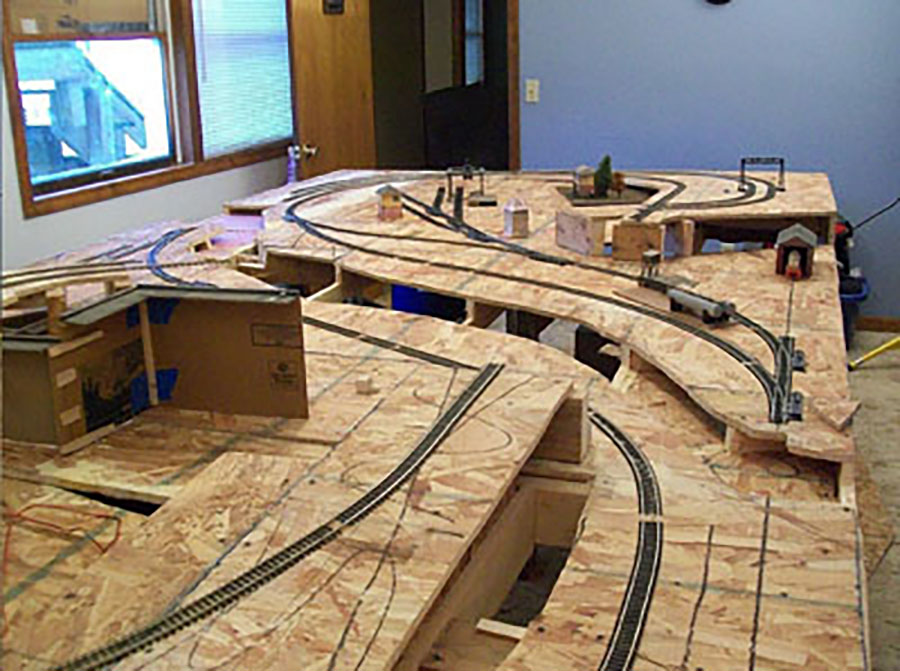

model train baseboard

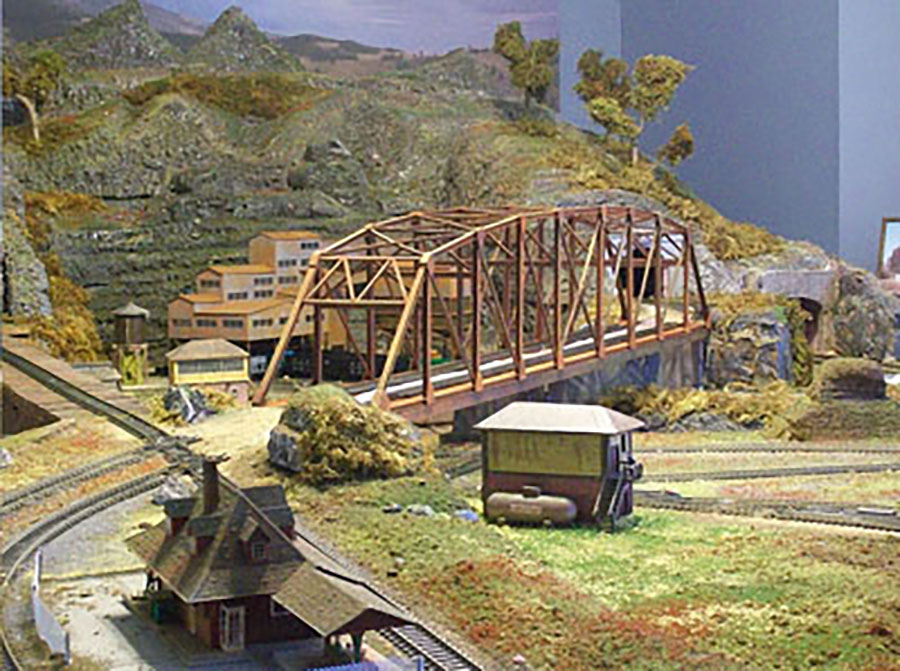

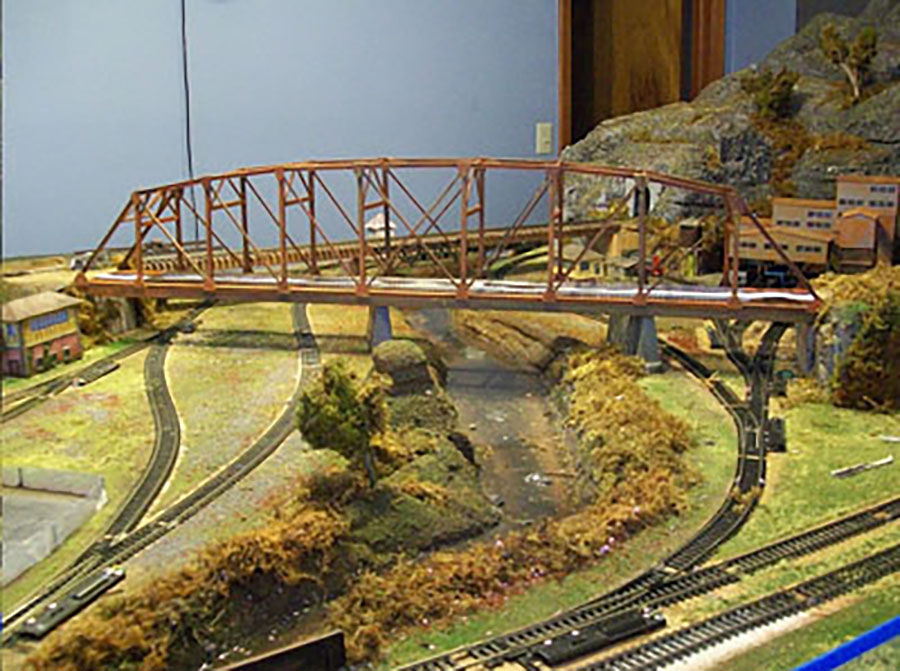

industrial ho scale bridge

model train trestle bridge mountains

model railroad crane

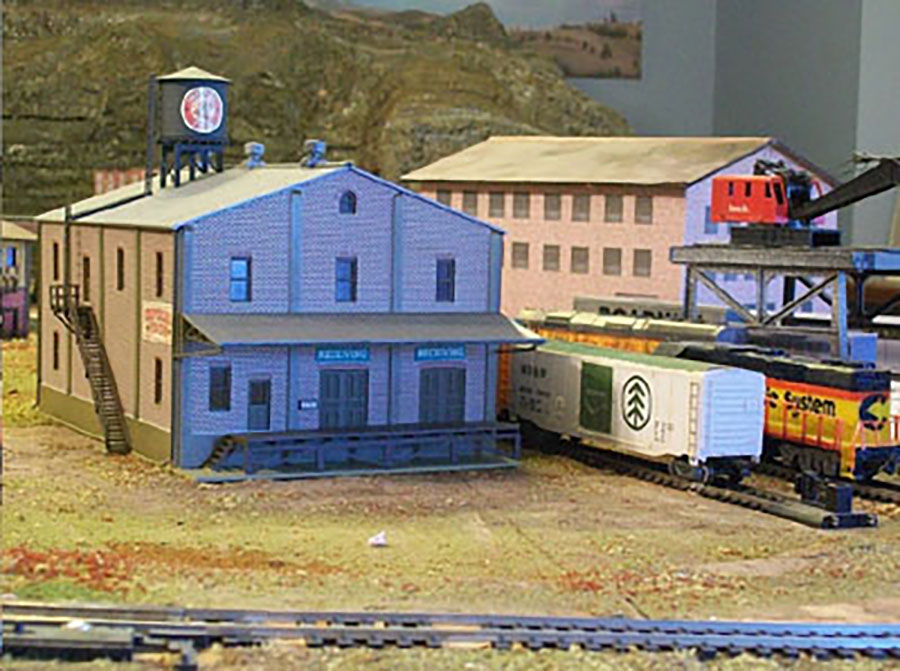

industrial ho scale factory

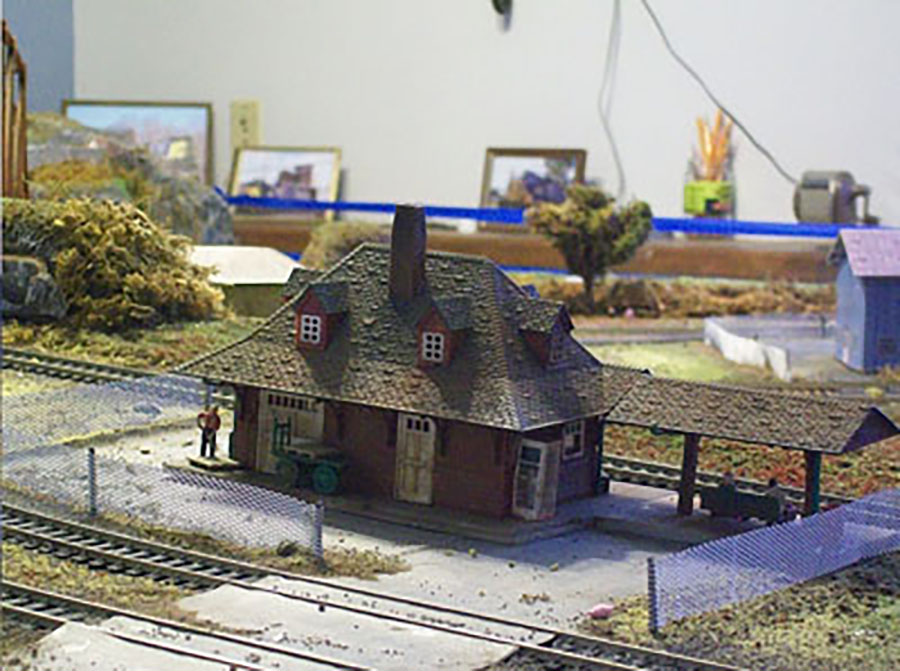

model train house

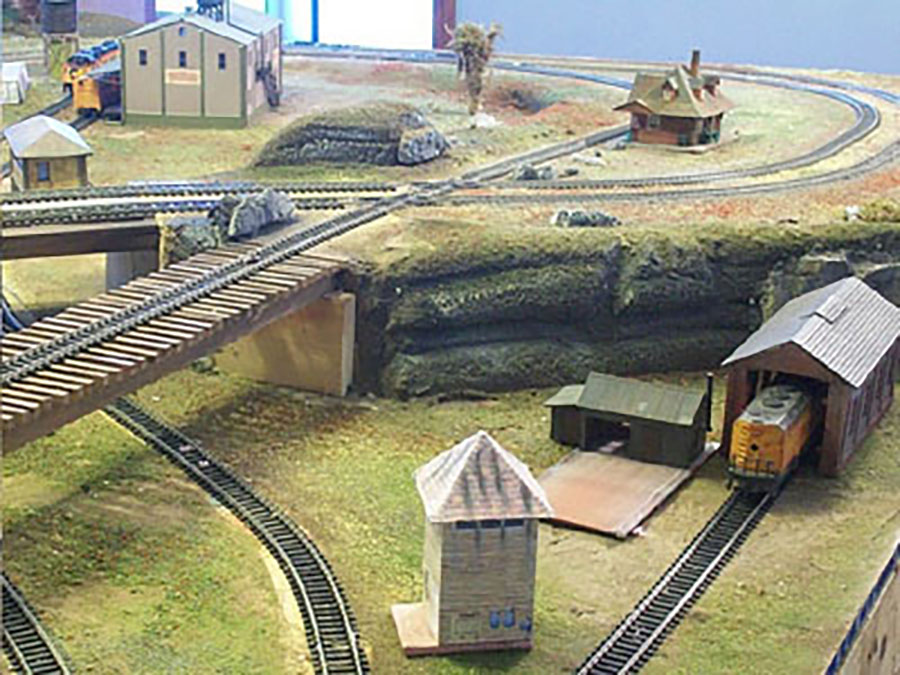

industrial ho scale loop

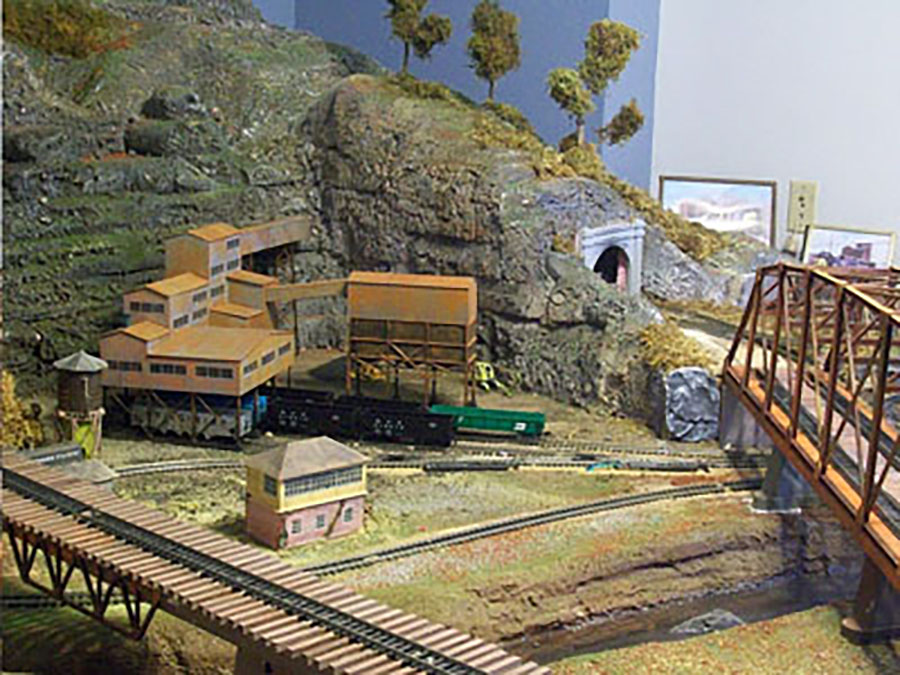

HO scale mine

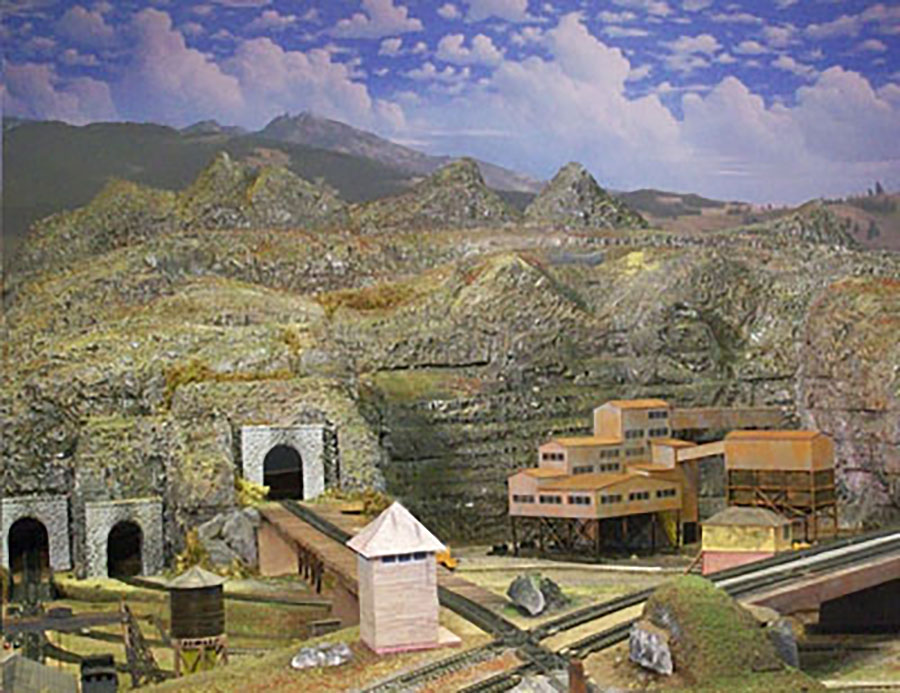

model train mountain scenery

industrial ho scale

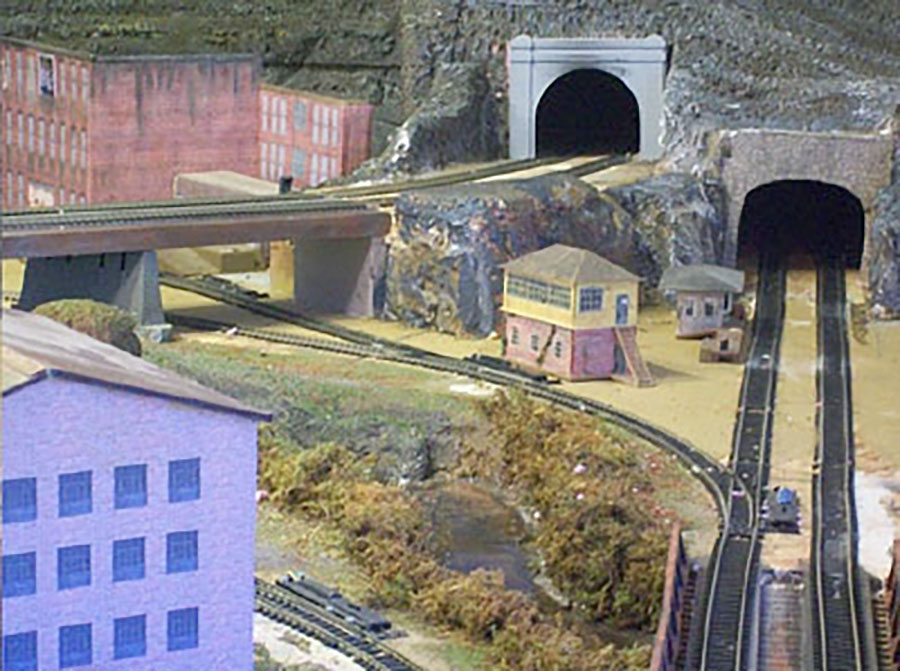

industrial ho scale tunnel

model train warehouse

HO scale engine

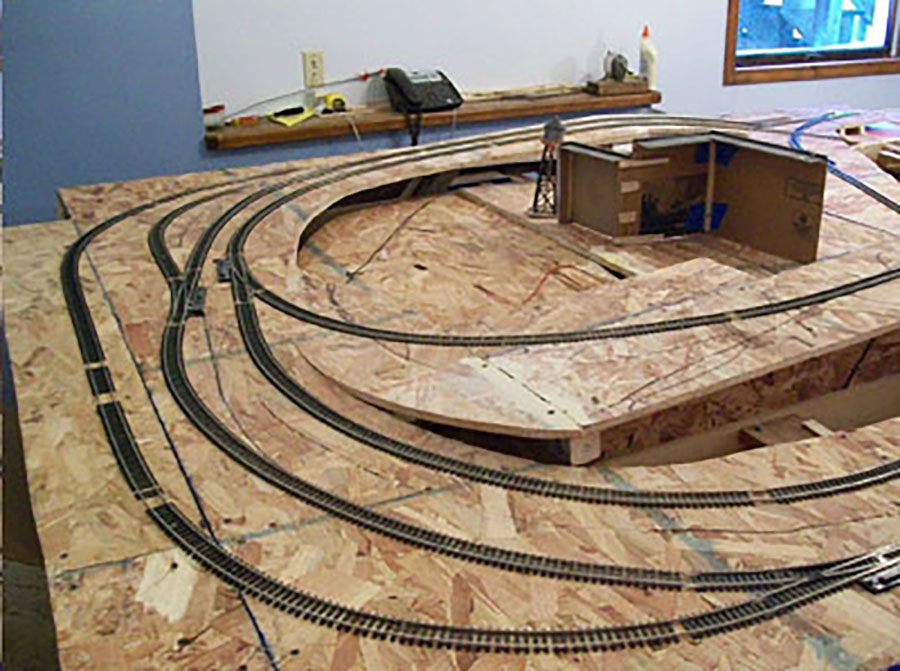

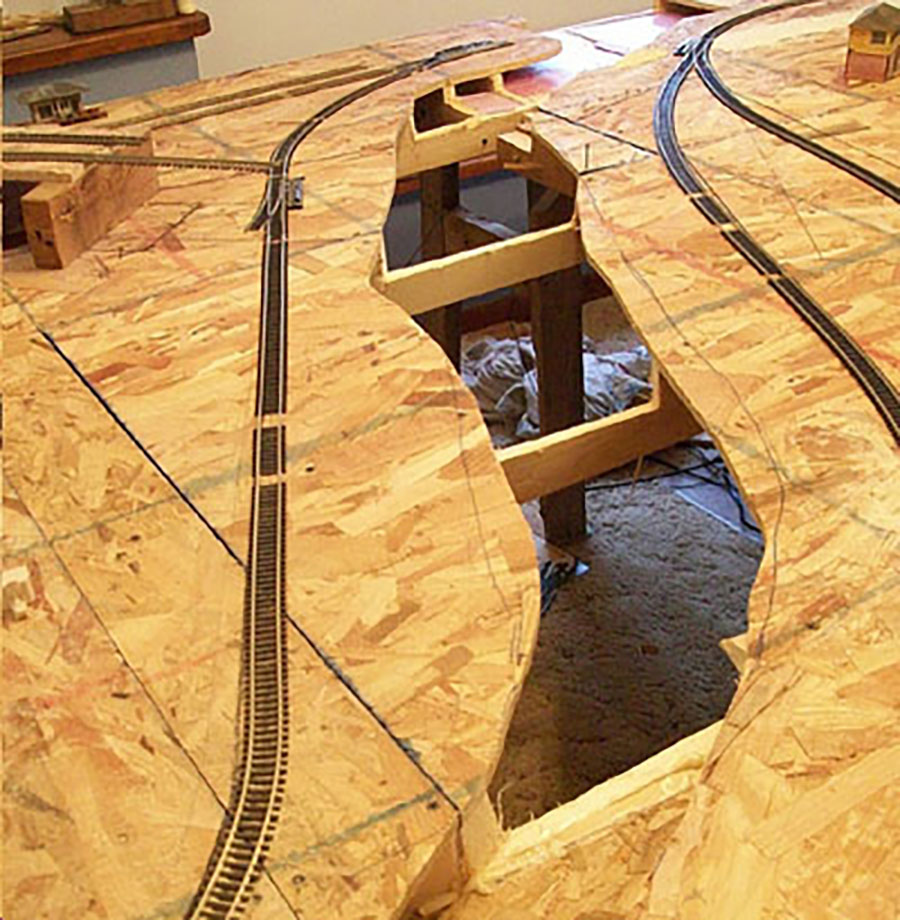

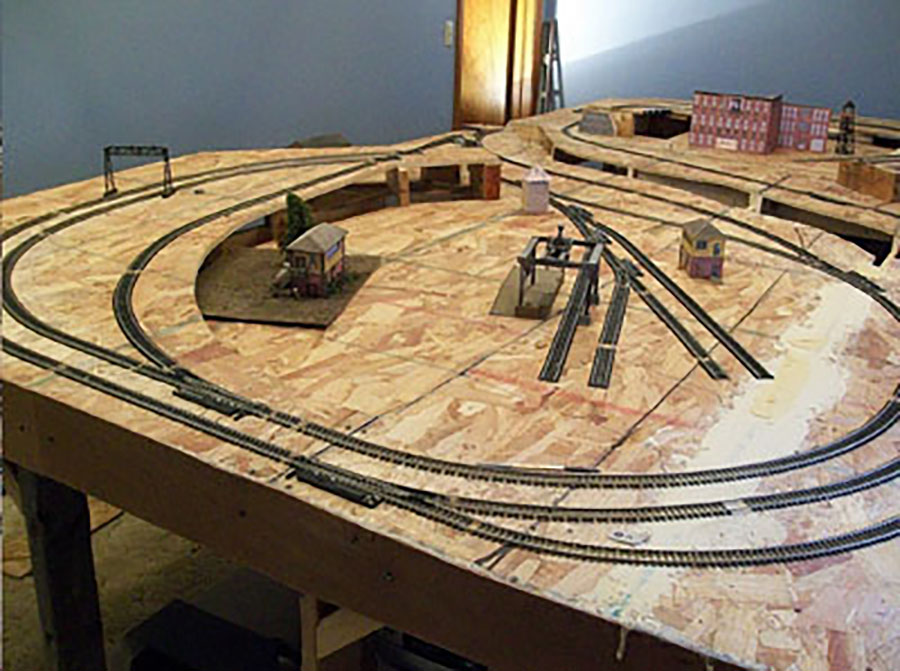

industrial ho scale benchwork

industrial ho scale benchwork

industrial ho scale benchwork

Just superb isn’t it? A huge big thank you to Michael for sharing his industrial HO scale.

Doug has also been in touch with a tip on inlclines, which looking at Michael’s pics is very relevant:

“My first try I did some reading and unfortunately found too many references to 4 (and higher) percentage grades. If you only want a really short consist (5 cars) you can do this, but a five-car train isn’t very impressive to watch running. Drag freight is 100 or so. I’m building #3 now and trying not to exceed 2%. Unless you’re modeling logging or mining areas, brief bursts of 3% exist but are rare.

You can still have multi-levels, just don’t do it all at once. Or, use a helix at 2% to go up and make the higher grades down-only.

The Big Boys were made to single-head Sherman Hill, the big climb in Wyoming for the UP, with 100-car drag freight consists. The grade: 1.55%.

Raton Pass, built near the original Santa Fe wagon trail, hit 3.3% on the early switchback route before they tunneled through the mountain.

Cajon Pass in southern California maxes for a few miles at 3%, the newer segments were lowered to 2.2.

The steepest mainline grade in the U.S. is probably Saluda, North Carolina, at a bit over 5%.

Unless your layout is tiny enough that tiny trains are all you can run anyway, you’ll be much happier with your options if you keep the grade to 2.

Doug”

A big thank you to Doug, there’s quite a few posts on the blog now about inclines and multi level layouts. Here’s a few of them:

How to make inclines

N scale multi level layout.

Multi level train layout.

Model train incline construction.

That’s all this time folks.

Please do keep ’em coming.

And if you feel like you’re missing out on the fun, the Beginner’s Guide is here.

Best

Al

PS Latest ebay cheat sheet is here.

PPS More HO scale train layouts here if that’s your thing.








And there’s the Silly Discount bundle too.

Best

Al

PS Latest ebay cheat sheet here!
